VTEC-1720 Conversion Kit

$20.00
10+ $18.00
20+ $17.00
50+ $16.00
[Model: VTEC-1720]      In Stock: Yes

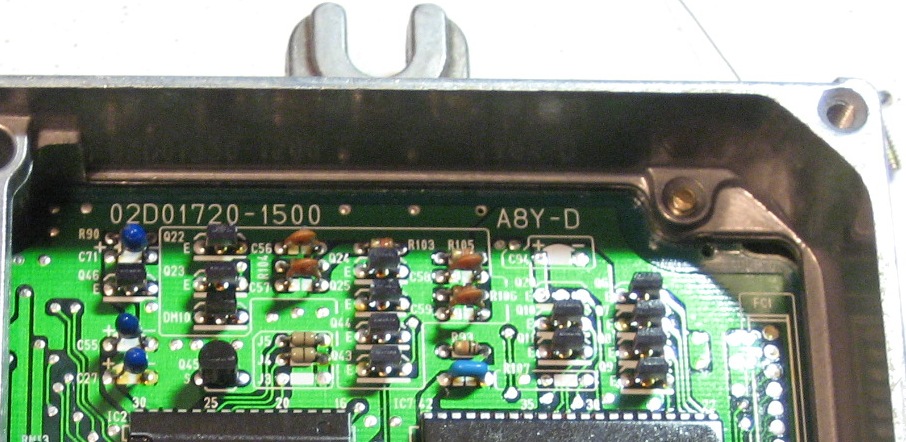

The 1720 board is the original board design of the P06/P28/P30 ECU family. To use this kit, the board in your ECU should have "1720" in the model number as depicted: 1720 Board

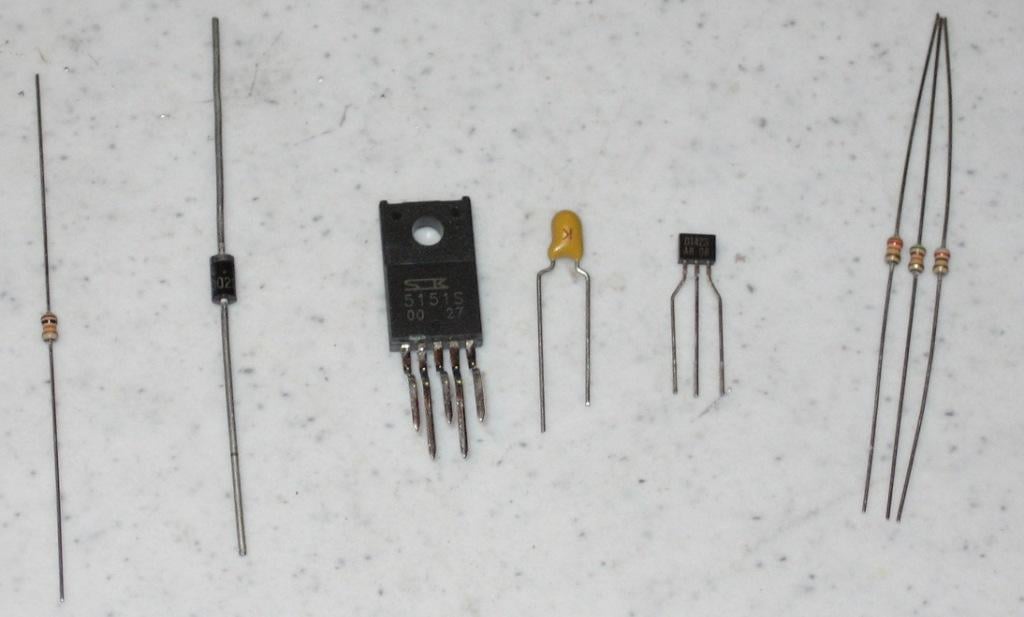

The following components are included for the Honda 1720 Board



1720:

Q26	D1423 NPN Transistor
C60	1uF Capacitor
IC14	SK5151 High Side Switch
J10	0 Ohm Resistor
R67	820 Ohm Resistor
RM11	RM11 Replacement Kit
D11	1N4002 Clamping Diode
Further information is available pgmfi.org

OFF ROAD USE NOTICE: items sold through Moates.net including tuning products may be designed for off-road/race use only, and are not applicable for vehicles in states that require pollution controlled vehicles. California (CARB) & other states prohibit the sale or use of some aftermarket parts, including those that tamper with, modify or defeat emissions systems in any 1966 and newer vehicles. Moates prohibits the use of these products on emission controlled vehicles. These parts are sold for OFF ROAD, RACE-ONLY, ground-vehicle use only in a controlled environment.
Moates does not implicitly or explicitly confirm the legality of using any products it sells on public roads. Customers are solely responsible for ensuring all products purchased are used in a legal manner.

This product was added to our catalog on Wednesday 04 April, 2007.
